Home > Lenses > 14PCX - Plano-Convex Lenses

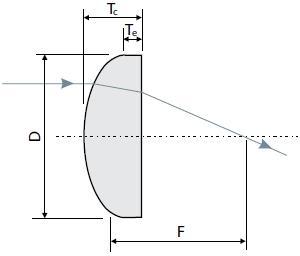

		Converges incident light

		Other dimensions are available in small and mass production quantities

		Various AR coatings are available for all these lenses. Please refer to the Coatings Section

Standard Specifications

Material	BK7, UVFS, CaF₂
Diameter Tolerance	+0.00, -0.12 mm
Thickness Tolerance	±5 mm
Centration	<3 arc minutes
Clear Aperture	>90%
Surface irregularity	λ/8 @ 633 nm
Surface Quality	40-20 scratch & dig (MIL-PRF-13830B)
Paraxial focal length	±2 % @ 546 nm for BK7 ±2 % @ 355 nm for UVFS ±2 % @ 2940 nm for CaF₂
AR Coatings	None. Please refer to the Coatings Section

Positive focal length lenses have flat surface on one side and spherical surface on the other. They are used for focusing beams in telescopes, collimators or condenser systems, optical transceivers or other applications. PCX lens up to 500 mm diameter are available. Under customers request lens are anti-reflection coated (please refer to the Coatings section).

BK7 Plano-Convex Lenses

Diameter	Focal Length, F	Centre thickness, CT	Edge thickness, ET	Ordering code
12,7 mm	20 mm	4,5 mm	2,3 mm	14PCX20-05-1
12,7 mm	25 mm	4 mm	2,7 mm	14PCX25-05-1
12,7 mm	40 mm	3 mm	2,3 mm	14PCX40-05-1
12,7 mm	50 mm	3 mm	2,4 mm	14PCX50-05-1
12,7 mm	60 mm	3 mm	2,5 mm	14PCX60-05-1
12,7 mm	75 mm	3 mm	2,6 mm	14PCX75-05-1
12,7 mm	100 mm	3 mm	2,7 mm	14PCX100-05-1
12,7 mm	150 mm	3 mm	2,8 mm	14PCX150-05-1
12,7 mm	200 mm	3 mm	2,8 mm	14PCX200-05-1
12,7 mm	250 mm	3 mm	2,9 mm	14PCX250-05-1
12,7 mm	500 mm	2,1 mm	2 mm	14PCX500-05-1
12,7 mm	1000mm	2,1 mm	2 mm	14PCX1000-05-1
12,7 mm	1500mm	2,1 mm	2,1 mm	14PCX1500-05-1
25,4 mm	30 mm	8,5 mm	2,3 mm	14PCX30-1-1
25,4 mm	40 mm	6,1 mm	2 mm	14PCX40-1-1
25,4 mm	50 mm	5 mm	2 mm	14PCX50-1-1
25,4 mm	60 mm	4,4 mm	2 mm	14PCX60-1-1
25,4 mm	75 mm	4 mm	2 mm	14PCX75-1-1
25,4 mm	90 mm	3 mm	2,6 mm	14PCX90-1-1
25,4 mm	100 mm	3,5 mm	2 mm	14PCX100-1-1
25,4 mm	125 mm	3,2 mm	2 mm	14PCX125-1-1
25,4 mm	150 mm	3 mm	2 mm	14PCX150-1-1
25,4 mm	175 mm	3 mm	2,1 mm	14PCX175-1-1
25,4 mm	200 mm	3 mm	2,2 mm	14PCX200-1-1
25,4 mm	250 mm	3 mm	2,4 mm	14PCX250-1-1
25,4 mm	300 mm	3 mm	2,5 mm	14PCX300-1-1
25,4 mm	350 mm	3 mm	2,5 mm	14PCX350-1-1
25,4 mm	400 mm	3 mm	2,5 mm	14PCX400-1-1
25,4 mm	450 mm	3 mm	2,7 mm	14PCX450-1-1
25,4 mm	500 mm	3 mm	2,7 mm	14PCX500-1-1
25,4 mm	550 mm	3 mm	2,7 mm	14PCX550-1-1
25,4 mm	600 mm	3 mm	2,7 mm	14PCX600-1-1
25,4 mm	700 mm	3 mm	2,8 mm	14PCX700-1-1
25,4 mm	800 mm	3 mm	2,8 mm	14PCX800-1-1
25,4 mm	900 mm	3 mm	2,8 mm	14PCX900-1-1
25,4 mm	1000mm	3 mm	2,8 mm	14PCX1000-1-1
25,4 mm	1200mm	3 mm	2,9 mm	14PCX1200-1-1
25,4 mm	1300mm	3 mm	2,9 mm	14PCX1300-1-1
25,4 mm	1500mm	3 mm	2,9 mm	14PCX1500-1-1
25,4 mm	2000mm	3 mm	2,9 mm	14PCX2000-1-1
25,4 mm	2500mm	3 mm	2,9 mm	14PCX2500-1-1
25,4 mm	3000 mm	3 mm	2,9 mm	14PCX3000-1-1
25,4 mm	4000 mm	3 mm	3 mm	14PCX4000-1-1
25,4 mm	5000mm	3 mm	3 mm	14PCX5000-1-1
25,4 mm	10000 mm	3 mm	3 mm	14PCX10000-1-1
38,1 mm	50 mm	12 mm	3 mm	14PCX50-1.5-1
38,1 mm	75 mm	7,3 mm	2,5 mm	14PCX75-1.5-1
38,1 mm	100 mm	6,5 mm	2,5 mm	14PCX100-1.5-1
38,1 mm	150 mm	5,1 mm	2,5 mm	14PCX150-1.5-1
38,1 mm	200 mm	4,3 mm	2,5 mm	14PCX200-1.5-1
38,1 mm	250 mm	4 mm	2,5 mm	14PCX250-1.5-1
38,1 mm	300 mm	4 mm	2,7 mm	14PCX300-1.5-1
38,1 mm	400 mm	4 mm	3,1 mm	14PCX400-1.5-1
38,1 mm	500 mm	4 mm	3,4 mm	14PCX500-1.5-1
38,1 mm	700 mm	4 mm	3,5 mm	14PCX700-1.5-1
38,1 mm	1000mm	4 mm	3,6 mm	14PCX1000-1.5-1
38,1 mm	5000mm	4 mm	3,8 mm	14PCX5000-1.5-1
50,8 mm	75 mm	12,3 mm	3 mm	14PCX75-2-1
50,8 mm	100 mm	10,4mm	3 mm	14PCX100-2-1
50,8 mm	150 mm	7,2 mm	3 mm	14PCX150-2-1
50,8 mm	200 mm	6,1 mm	3 mm	14PCX200-2-1
50,8 mm	250 mm	5,4 mm	3 mm	14PCX250-2-1
50,8 mm	300 mm	5 mm	3 mm	14PCX300-2-1
50,8 mm	350 mm	4,7 mm	3 mm	14PCX350-2-1
50,8 mm	400 mm	5,5 mm	4 mm	14PCX400-2-1
50,8 mm	500 mm	5,2 mm	4 mm	14PCX500-2-1
50,8 mm	600 mm	5 mm	4 mm	14PCX600-2-1
50,8 mm	700 mm	5 mm	4,1 mm	14PCX700-2-1
50,8 mm	800 mm	5 mm	4,2 mm	14PCX800-2-1
50,8 mm	1000mm	5 mm	4,4 mm	14PCX1000-2-1
50,8 mm	2000mm	5 mm	4,7 mm	14PCX2000-2-1
50,8 mm	5000mm	5 mm	4,9 mm	14PCX5000-2-1
50,8 mm	10000 mm	5 mm	4,9 mm	14PCX10000-2-1
76,2 mm	500 mm	9,7 mm	7 mm	14PCX500-3-1
76,2 mm	750 mm	8,9 mm	7 mm	14PCX750-3-1
76,2 mm	1000 mm	8,4 mm	7 mm	14PCX1000-3-1

UVFS Plano-Convex Lenses

Diameter	Focal Length, F	Centre thickness, CT	Edge thickness, ET	Ordering code
12,7 mm	25 mm	4 mm	2,2 mm	14PCX25-05-2
12,7 mm	30 mm	3,7 mm	2,2 mm	14PCX30-05-2
12,7 mm	50 mm	3 mm	2,2 mm	14PCX50-05-2
12,7 mm	75 mm	3 mm	2,4 mm	14PCX75-05-2
12,7 mm	80 mm	3,5 mm	3 mm	14PCX80-05-2
12,7 mm	90 mm	3,5 mm	3 mm	14PCX90-05-2
12,7 mm	100 mm	3 mm	2,5 mm	14PCX100-05-2
12,7 mm	125 mm	3 mm	2,6 mm	14PCX125-05-2
12,7 mm	150 mm	3 mm	2,7 mm	14PCX150-05-2
12,7 mm	175 mm	3 mm	2,8 mm	14PCX175-05-2
12,7 mm	200 mm	3 mm	2,8 mm	14PCX200-05-2
12,7 mm	250 mm	3 mm	2,8 mm	14PCX250-05-2
12,7 mm	300 mm	3 mm	2,9 mm	14PCX300-05-2
12,7 mm	350 mm	3,5 mm	3,4 mm	14PCX350-05-2
12,7 mm	400 mm	3 mm	2,9 mm	14PCX400-05-2
25,4 mm	30 mm	9,75 mm	2 mm	14PCX30-1-2
25,4 mm	50 mm	6 mm	2,3 mm	14PCX50-1-2
25,4 mm	75 mm	4,5 mm	2,2 mm	14PCX75-1-2
25,4 mm	80 mm	4,6 mm	2,5 mm	14PCX80-1-2
25,4 mm	100 mm	4 mm	2,3 mm	14PCX100-1-2
25,4 mm	125 mm	4 mm	2,4 mm	14PCX125-1-2
25,4 mm	150 mm	4 mm	2,8 mm	14PCX150-1-2
25,4 mm	200 mm	4 mm	3,2 mm	14PCX200-1-2
25,4 mm	250 mm	4 mm	3,3 mm	14PCX250-1-2
25,4 mm	300 mm	4 mm	3,4 mm	14PCX300-1-2
25,4 mm	350 mm	4 mm	3,5 mm	14PCX350-1-2
25,4 mm	400 mm	4 mm	3,6 mm	14PCX400-1-2
25,4 mm	500 mm	4 mm	3,6 mm	14PCX500-1-2
25,4 mm	600 mm	4 mm	3,6 mm	14PCX600-1-2
25,4 mm	700 mm	4 mm	3,7 mm	14PCX700-1-2
25,4 mm	750 mm	4 mm	3,7 mm	14PCX750-1-2
25,4 mm	800 mm	4 mm	3,8 mm	14PCX800-1-2
25,4 mm	1000mm	4 mm	3,8 mm	14PCX1000-1-2
25,4 mm	1500mm	4 mm	3,9 mm	14PCX1500-1-2
25,4 mm	2000mm	4 mm	3,9 mm	14PCX2000-1-2
25,4 mm	5000mm	4 mm	4 mm	14PCX5000-1-2
38,1 mm	50 mm	13,5 mm	2,5 mm	14PCX50-1.5-2
38,1 mm	75 mm	8,6 mm	2,5 mm	14PCX75-1.5-2
38,1 mm	100 mm	6,9 mm	2,5 mm	14PCX100-1.5-2
38,1 mm	150 mm	5,4 mm	2,5 mm	14PCX150-1.5-2
38,1 mm	200 mm	4 mm	2,8 mm	14PCX200-1.5-2
38,1 mm	250 mm	4 mm	2,2 mm	14PCX250-1.5-2
38,1 mm	300 mm	4 mm	2,5 mm	14PCX300-1.5-2
38,1 mm	400 mm	4 mm	2,9 mm	14PCX400-1.5-2
38,1 mm	500 mm	4 mm	3,1 mm	14PCX500-1.5-2
38,1 mm	600 mm	4 mm	3,2 mm	14PCX600-1.5-2
38,1 mm	1000mm	4 mm	3,5 mm	14PCX1000-1.5-2
38,1 mm	1500mm	4 mm	3,7 mm	14PCX1500-1.5-2
38,1 mm	3000 mm	4 mm	3,9 mm	14PCX3000-1.5-2
38,1 mm	5000mm	4 mm	3,9 mm	14PCX5000-1.5-2
50,8 mm	75 mm	12,2 mm	2 mm	14PCX75-2-2
50,8 mm	100 mm	9,6 mm	2 mm	14PCX100-2-2
50,8 mm	150 mm	6,5 mm	2 mm	14PCX150-2-2
50,8 mm	200 mm	6 mm	2,5 mm	14PCX200-2-2
50,8 mm	250 mm	6 mm	3,3 mm	14PCX250-2-2
50,8 mm	300 mm	6 mm	3,7 mm	14PCX300-2-2
50,8 mm	400 mm	6 mm	4,3 mm	14PCX400-2-2
50,8 mm	500 mm	6 mm	4,7 mm	14PCX500-2-2
50,8 mm	600 mm	6 mm	4,9 mm	14PCX600-2-2
50,8 mm	700 mm	6 mm	4,9 mm	14PCX700-2-2
50,8 mm	800 mm	6 mm	4,8 mm	14PCX800-2-2
50,8 mm	1000mm	6 mm	5,3 mm	14PCX1000-2-2
50,8 mm	2000mm	6 mm	5,7 mm	14PCX2000-2-2
50,8 mm	2500mm	6 mm	5,7 mm	14PCX2500-2-2
50,8 mm	5000 mm	5 mm	5,7 mm	14PCX5000-2-2

CaF₂ Plano-Convex Lenses

Diameter	Focal Length, F	Centre thickness, CT	Edge thickness, ET	Ordering code
12,7 mm	25 mm	4,1 mm	2 mm	14PCX25-05-3
12,7 mm	50 mm	3 mm	2 mm	14PCX50-05-3
12,7 mm	75 mm	2,6 mm	2 mm	14PCX75-05-3
12,7 mm	100 mm	2,5 mm	2 mm	14PCX100-05-3
12,7 mm	150 mm	2,3 mm	2 mm	14PCX150-05-3
12,7 mm	200 mm	2,2 mm	2 mm	14PCX200-05-3
12,7 mm	250 mm	2,2 mm	2 mm	14PCX250-05-3
12,7 mm	500 mm	2,1 mm	2 mm	14PCX500-05-3
12,7 mm	1000 mm	3 mm	2,9 mm	14PCX1000-05-3
25,4 mm	40 mm	7,9 mm	2 mm	14PCX40-1-3
25,4 mm	50 mm	7,3 mm	3 mm	14PCX50-1-3
25,4 mm	75 mm	5,7 mm	3 mm	14PCX75-1-3
25,4 mm	100 mm	5 mm	3 mm	14PCX100-1-3
25,4 mm	125 mm	5 mm	3 mm	14PCX125-1-3
25,4 mm	150 mm	4,3 mm	3 mm	14PCX150-1-3
25,4 mm	200 mm	4 mm	3 mm	14PCX200-1-3
25,4 mm	250 mm	3,8 mm	3 mm	14PCX250-1-3
25,4 mm	300 mm	3,7 mm	3 mm	14PCX300-1-3
25,4 mm	500 mm	3,4 mm	3 mm	14PCX500-1-3
25,4 mm	750 mm	3 mm	2,7 mm	14PCX750-1-3
25,4 mm	1000mm	3,2 mm	3 mm	14PCX1000-1-3
