Home > Laser Eye Protection > Protective Laser Windows
Laser windows, used mainly in industrial field, are composed of the same base material as our eyewear line. The filters are specific, developed for the more common laser machines; in the catalogue they are available in different sizes, but they can be customized upon request. They are absorption filters, made both in glass, with high absorption capacity and good visible light transmission and in plastic, ultra-light and impact resistant but with a lower optical density.


Tables and protection levels
D - continuous wave laser View table
I - pulsed laser > 100 ns View table
R - Q-switched operation 10-9-10-7s View table
OD - optical densities View table

Click model to see detailed information:

Glass
11W-706 BL 11W-706 GL 11W-709
Acrilic
11W-708 EK 11W-708 FK 11W-708 GK
Polycarbonate
11W-708 DZ 11W-708 CZ / EZ / FZ

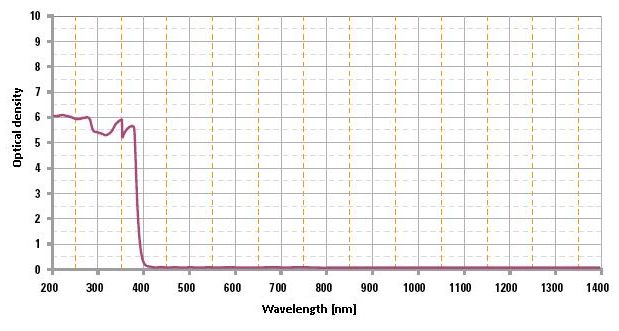

11W-708 DZ




FilterFull protection
ColourClear
MaterialPolycarbonate
Thickness4.0 mm
VLT90%
Alignment laser wavelength (T%>10%)400-780 nm
WavelengthODProtection level
1903155D LB5 IR LB3
106006DI LB4


Maximum dimensions 2000x3000 mm.
This window is supplied with dimensions, holes, coupling seats made according to designs provided by customers.

Ordering
