Broadband high power polarizers for visible or near IR wavelengths
Air-spaced
Close to Brewster`s Angle Cutting
High Polarization Purity
Short Length
Double escape windows for intracavity use
Prisms from α-BBO or YVO4 are available upon request

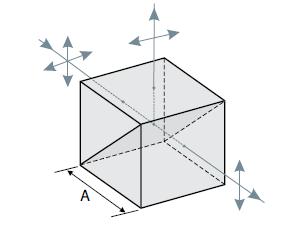

High Power Glan Polarizing Prisms produces linear polarized light
from unpolarized input and is made of a higher grade calcite. The
prism has two escape windows to allow the rejected beams to
escape. Its entrance and exit faces are polished using deep grinding
and polishing technique to minimize scatter from surface.
Standard Specifications
Material
Calcite Grade "Unique"
Wavelength Range
UV (220nm - 2300nm) and VIS (350nm - 2300nm)
Size
10x10, 12x12, 14x14, 16x16, 19x19 mm
Beam Deviation
< 1 arcmin
Full Angle Field
8° (asymmetrical)
Extinction Ratio
0.5x10-5
Surface Quality
Entrance and exit faces: 40-20 scratch and dig
Escape Windows
80-50 scratch and dig
Surface Flatness
Entrance and exit faces: λ/4 @ 633 nm
Escape Windows
λ @ 633 nm
Max. Power Handling
200 MW/cm2, pulsed
Housing
Black anodized aluminum with two exit ports for the rejected beams View drawings
