Home > Off-Axis Mirrors > 14OAP - Off-Axis Parabolic Mirrors
Off-Axis Parabolic Mirrors
Aluminum Substrate Mirrors
Available in 30°, 60°, or 90° Off-Axis
Mounting Plates Also Available
Standard Specifications
MaterialAluminium
Diameter Tolerance +0.0, +0.4 mm
Focal Length Tolerance±1%
Surface Figure1/4λ - 1λ RMS (depends on size)
Surface Roughness < 100-175 Å RMS
Coating Protected Aluminum
or Protected Gold

Standa provides standard and special metal mirrors with parabolic surface contours for off-axis beam focusing performance. These mirrors are machined from solid bar stock to minimize surface figure deformation which is inherent to the thin walled replicated type. The metal mirrors are produced with advanced Diamond turning equipment.

Metal Mirrors

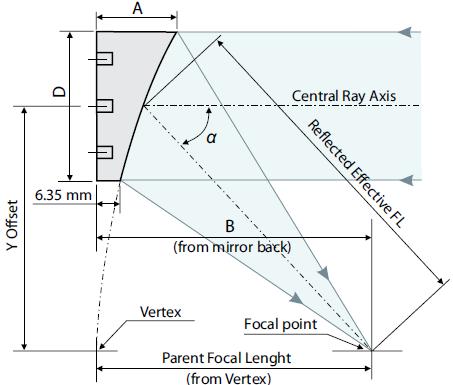

DiameterParent Focal Length (mm)Effective Focal Length (mm)Y Offset (mm)Angle α, (deg)Protected AluminumProtected Gold
25.4381387.6100.331514OAP-1-381-15-AL14OAP-1-381-15-GM
25.4635654.99167.21514OAP-1-635-15-AL14OAP-1-635-15-GM
50.8304.8310.0880.261514OAP-2-304.8-15-AL14OAP-2-304.8-15-GM
50.8508516.81133.751514OAP-2-508-15-AL14OAP-2-508-15-GM
76.2635646167.21514OAP-3-635-15-AL14OAP-3-635-15-GM
101.6381387.6100.331514OAP-4-381-15-AL14OAP-4-381-15-GM
101.6508516.81133.751514OAP-4-508-15-AL14OAP-4-508-15-GM
25.425.427.2213.613014OAP-1-25.4-30-AL14OAP-1-25.4-30-GM
25.450.854.4527.223014OAP-1-50.8-30-AL14OAP-1-50.8-30-GM
50.850.854.4527.223014OAP-2-50.8-30-AL14OAP-2-50.8-30-GM
50.8101.6108.8954.453014OAP-2-101.6-30-AL14OAP-2-101.6-30-GM
50.8127136.1268.063014OAP-2-127-30-AL14OAP-2-127-30-GM
50.8254272.24136.123014OAP-2-254-30-AL14OAP-2-254-30-GM
76.276.281.6740.843014OAP-3-76.2-30-AL14OAP-3-76.2-30-GM
76.2254272.23136.113014OAP-3-254-30-AL14OAP-3-254-30-GM
101.6304.8326.69163.343014OAP-4-304.8-30-AL14OAP-4-304.8-30-GM
25.4101.6119.0284.174514OAP-1-101.6-45-AL14OAP-1-101.6-45-GM
25.4127148.79105.24514OAP-1-127-45-AL14OAP-1-127-45-GM
50.850.859.5142.084514OAP-2-50.8-45-AL14OAP-2-50.8-45-GM
50.8101.6119.0384.174514OAP-2-101.6-45-AL14OAP-2-101.6-45-GM
76.276.289.2863.114514OAP-3-76.2-45-AL14OAP-3-76.2-45-GM
76.2127148.79105.214514OAP-3-127-45-AL14OAP-3-127-45-GM
76.2152.4178.53126.264514OAP-3-152.4-45-AL14OAP-3-152.4-45-GM
101.6101.6119.0384.174514OAP-4-101.6-45-AL14OAP-4-101.6-45-GM
101.6152.4178.55126.254514OAP-4-152.4-45-AL14OAP-4-152.4-45-GM
25.425.433.8529.336014OAP-1-25.4-60-AL14OAP-1-25.4-60-GM
25.438.150.843.996014OAP-1-38.1-60-AL14OAP-1-38.1-60-GM
25.450.867.7458.646014OAP-1-50.8-60-AL14OAP-1-50.8-60-GM
50.876.2101.687.986014OAP-2-76.2-60-AL14OAP-2-76.2-60-GM
76.276.2101.687.996014OAP-3-76.2-60-AL14OAP-3-76.2-60-GM
76.2114.3152.4131.986014OAP-3-114.3-60-AL14OAP-3-114.3-60-GM
25.412.725.425.49014OAP-1-12.7-90-AL14OAP-1-12.7-90-GM
25.425.450.850.89014OAP-1-25.4-90-AL14OAP-1-25.4-90-GM
25.450.8101.6101.69014OAP-1-50.8-90-AL14OAP-1-50.8-90-GM
25.476.2152.4152.49014OAP-1-76.2-90-AL14OAP-1-76.2-90-GM
25.4101.6203.2203.29014OAP-1-101.6-90-AL14OAP-1-101.6-90-GM
50.825.450.850.89014OAP-2-25.4-90-AL14OAP-2-25.4-90-GM
50.850.8101.6101.69014OAP-2-50.8-90-AL14OAP-2-50.8-90-GM
50.876.2152.4152.49014OAP-2-76.2-90-AL14OAP-2-76.2-90-GM
50.895.3190.5190.59014OAP-2-95.3-90-AL14OAP-2-95.3-90-GM
76.225.450.850.89014OAP-3-25.4-90-AL14OAP-3-25.4-90-GM
76.250.8101.6101.69014OAP-3-50.8-90-AL14OAP-3-50.8-90-GM
76.276.2152.4152.49014OAP-3-76.2-90-AL14OAP-3-76.2-90-GM
76.288.9177.8177.89014OAP-3-88.9-90-AL14OAP-3-88.9-90-GM
101.650.8101.6101.69014OAP-4-50.8-90-AL14OAP-4-50.8-90-GM
101.676.2152.4152.49014OAP-4-76.2-90-AL14OAP-4-76.2-90-GM

Ordering
