Home > Lenses > 14PCL - Positive Cylindrical Lenses

		Rectangular and Round shape are available

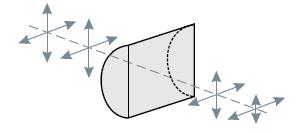

		Focus light in one dimension only

		Other dimensions are available in small and mass production quantities

		Various AR coatings are available for all these lenses. Please refer to the Coatings Section

Cylindrical lenses with positive focal length condense light in one dimension only. They are used to focus light to a thin line for effective harmonic generation in nonlinear crystals, in laser scanners, spectroscopy, dye lasers, acousto-optics or other applications. They are also irreplaceable for circularization of diode laser outputs, energy collection for linear detectors or for coupling to a slit input.

Standard Specifications

Material	BK7, UVFS
Size Tolerance	±0.5 mm
Thickness Tolerance	±0.5 mm
Clear Aperture	>90%
Surface Irregularity	1/λ @ 633 nm
Surface Quality	40-20 scratch & dig
Paraxial focal length	±2% @ 546 nm for BK7 ±2% @ 355 nm for UVFS
AR Coatings	None. Please refer to the Coatings Section

BK7 Positive Cylindrical Lenses

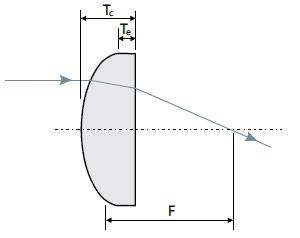

Dimension A	Dimension B	Focal length, F	Centre thickness, CT	Edge thickness, ET	Ordering code
12,7 mm	12,7 mm	15 mm	3,7 mm	1,5 mm	14PCL15-1-1
10 mm	10 mm	F 15 mm	3,7 mm	1,5 mm	14PCL15-2-1
19,1 mm	25,4 mm	F 25 mm	6,1 mm	2 mm	14PCL25-3-1
19 mm	25 mm	F 25 mm	6,1 mm	2 mm	14PCL25-4-1
25,4 mm	25,4 mm	F 25 mm	14 mm	2,5 mm	14PCL25-5-1
25 mm	25 mm	F 25 mm	14 mm	2,5 mm	14PCL25-6-1
25,4 mm	25,4 mm	F 30 mm	8,5 mm	2mm	14PCL30-5-1
25 mm	25 mm	F 30 mm	8,5 mm	2mm	14PCL30-6-1
25,4 mm	25,4 mm	F 40 mm	6,4 mm	2mm	14PCL40-5-1
25 mm	25 mm	F 40 mm	6,4 mm	2 mm	14PCL40-6-1
25,4 mm	25,4 mm	F 50 mm	5,2 mm	2 mm	14PCL50-5-1
25 mm	25 mm	F 50 mm	5,2 mm	2 mm	14PCL50-6-1
25,4 mm	50,8 mm	F 50 mm	5,2 mm	2 mm	14PCL50-7-1
25 mm	50 mm	F 50 mm	5,2 mm	2 mm	14PCL50-8-1
25,4 mm	25,4 mm	F 75 mm	4,1 mm	2 mm	14PCL75-5-1
25 mm	25 mm	F 75 mm	4,1 mm	2 mm	14PCL75-6-1
25,4 mm	50,8 mm	F 75 mm	4,1 mm	2 mm	14PCL75-7-1
25 mm	50 mm	F 75 mm	4,1 mm	2 mm	14PCL75-8-1
25,4 mm	25,4 mm	F 100 mm	3,5 mm	2 mm	14PCL100-5-1
25 mm	25 mm	F 100 mm	3,5 mm	2 mm	14PCL100-6-1
25,4 mm	50,8 mm	F 100 mm	3,5 mm	2 mm	14PCL100-7-1
25 mm	50 mm	F 100 mm	3,5 mm	2 mm	14PCL100-8-1
25,4 mm	25,4 mm	F 150 mm	3 mm	2 mm	14PCL150-5-1
25 mm	25 mm	F 150 mm	3 mm	2 mm	14PCL150-6-1
25,4 mm	50,8 mm	F 150 mm	3 mm	2 mm	14PCL150-7-1
25 mm	50 mm	F 150 mm	3 mm	2 mm	14PCL150-8-1
25,4 mm	25,4 mm	F 200 mm	2,8 mm	2 mm	14PCL200-5-1
25 mm	25 mm	F 200 mm	2,8 mm	2 mm	14PCL200-6-1
25,4 mm	50,8 mm	F 200 mm	2,8 mm	2 mm	14PCL200-7-1
25 mm	50 mm	F 200 mm	2,8 mm	2 mm	14PCL200-8-1
25,4 mm	25,4 mm	F 300 mm	2,5 mm	2 mm	14PCL300-5-1
25 mm	25 mm	F 300 mm	2,5 mm	2 mm	14PCL300-6-1
25,4 mm	50,8 mm	F 300 mm	2,5 mm	2 mm	14PCL300-7-1
25 mm	50 mm	F 300 mm	2,5 mm	2 mm	14PCL300-8-1
25,4 mm	25,4 mm	F 500 mm	2,4 mm	2 mm	14PCL500-5-1
25 mm	25 mm	F 500 mm	2,4 mm	2 mm	14PCL500-6-1
25,4 mm	50,8 mm	F 500 mm	2,4 mm	2 mm	14PCL500-7-1
25 mm	50 mm	F 500 mm	2,4 mm	2 mm	14PCL500-8-1
25,4 mm	25,4 mm	F 1000 mm	2,3 mm	2 mm	14PCL1000-5-1
25 mm	25 mm	F 1000 mm	2,3 mm	2 mm	14PCL1000-6-1
25,4 mm	50,8 mm	F 1000 mm	2,3 mm	2 mm	14PCL1000-7-1
25 mm	50 mm	F 1000 mm	2,3 mm	2 mm	14PCL1000-8-1
25,4 mm	25,4 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-5-1
25 mm	25 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-6-1
25,4 mm	50,8 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-7-1
25 mm	50 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-8-1

UVFS Positive Cylindrical Lenses

Dimension A	Dimension B	Focal length, F	Centre thickness, CT	Edge thickness, ET	Ordering code
12,7 mm	12,7 mm	F 15 mm	4,9 mm	2 mm	14PCL15-1-2
10 mm	10 mm	F 15 mm	4,9 mm	2 mm	14PCL15-2-2
19,1 mm	25,4 mm	F 25 mm	8 mm	3 mm	14PCL25-3-2
19 mm	25 mm	F 25 mm	8 mm	3 mm	14PCL25-4-2
25,4 mm	25,4 mm	F 30 mm	10 mm	2,5 mm	14PCL30-5-2
25 mm	25 mm	F 30 mm	10 mm	2,5 mm	14PCL30-6-2
25,4 mm	25,4 mm	F 40 mm	8 mm	3,1 mm	14PCL40-5-2
25 mm	25 mm	F 40 mm	8 mm	3,1 mm	14PCL40-6-2
25,4 mm	25,4 mm	F 50 mm	7,1 mm	3,5 mm	14PCL50-5-2
25 mm	25 mm	F 50 mm	7,1 mm	3,5 mm	14PCL50-6-2
25,4 mm	50,8 mm	F 50 mm	7,1 mm	3,5 mm	14PCL50-7-2
25 mm	50 mm	F 50 mm	7,1 mm	3,5 mm	14PCL50-8-2
25,4 mm	25,4 mm	F 75 mm	5,6 mm	3,3 mm	14PCL75-5-2
25 mm	25 mm	F 75 mm	5,6 mm	3,3 mm	14PCL75-6-2
25,4 mm	50,8 mm	F 75 mm	5,6 mm	3,3 mm	14PCL75-7-2
25 mm	50 mm	F 75 mm	5,6 mm	3,3 mm	14PCL75-8-2
25,4 mm	25,4 mm	F 100 mm	4,7 mm	3 mm	14PCL100-5-2
25 mm	25 mm	F 100 mm	4,7 mm	3 mm	14PCL100-6-2
25,4 mm	50,8 mm	F 100 mm	4,7 mm	3 mm	14PCL100-7-2
25 mm	50 mm	F 100 mm	4,7 mm	3 mm	14PCL100-8-2
25,4 mm	25,4 mm	F 150 mm	4,1 mm	3 mm	14PCL150-5-2
25 mm	25 mm	F 150 mm	4,1 mm	3 mm	14PCL150-6-2
25,4 mm	50,8 mm	F 150 mm	4,1 mm	3 mm	14PCL150-7-2
25 mm	50 mm	F 150 mm	4,1 mm	3 mm	14PCL150-8-2
25,4 mm	25,4 mm	F 200 mm	4,3 mm	3,5 mm	14PCL200-5-2
25 mm	25 mm	F 200 mm	4,3 mm	3,5 mm	14PCL200-6-2
25,4 mm	50,8 mm	F 200 mm	4,3 mm	3,5 mm	14PCL200-7-2
25 mm	50 mm	F 200 mm	4,3 mm	3,5 mm	14PCL200-8-2
25,4 mm	25,4 mm	F 250 mm	4,2 mm	3,5 mm	14PCL250-5-2
25 mm	25 mm	F 250 mm	4,2 mm	3,5 mm	14PCL250-6-2
25,4 mm	50,8 mm	F 250 mm	4,2 mm	3,5 mm	14PCL250-7-2
25 mm	50 mm	F 250 mm	4,2 mm	3,5 mm	14PCL250-8-2
25,4 mm	25,4 mm	F 300 mm	4,1 mm	3,5 mm	14PCL300-5-2
25 mm	25 mm	F 300 mm	4,1 mm	3,5 mm	14PCL300-6-2
25,4 mm	50,8 mm	F 300 mm	4,1 mm	3,5 mm	14PCL300-7-2
25 mm	50 mm	F 300 mm	4,1 mm	3,5 mm	14PCL300-8-2
25,4 mm	50,8 mm	F 500 mm	3,8 mm	3,5 mm	14PCL500-7-2
25 mm	50 mm	F 500 mm	3,8 mm	3,5 mm	14PCL500-8-2
25,4 mm	25,4 mm	F 1000 mm	2,5 mm	2,3 mm	14PCL1000-5-2
25 mm	25 mm	F 1000 mm	2,5 mm	2,3 mm	14PCL1000-6-2
25,4 mm	50,8 mm	F 1000 mm	2,5 mm	2,3 mm	14PCL1000-7-2
25 mm	50 mm	F 1000 mm	2,5 mm	2,3 mm	14PCL1000-8-2
25,4 mm	25,4 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-5-2
25 mm	25 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-6-2
25,4 mm	50,8 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-7-2
25 mm	50 mm	F 1500 mm	2,2 mm	2 mm	14PCL1500-8-2

Related products

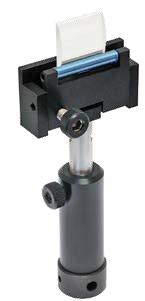

4PH132 Universal Plate Holder	5OM37-20 Two Angular Fine Adjustment Mounts
