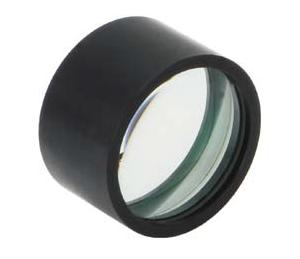

Mounted Achromatic Triplet Lenses
Air-Spaced three lens design for infinite conjugate ratios
AR coatings available upon request
Provides minimal chromatic and spherical aberrations
Custom size triplets available upon request



Standard Specifications
Diameter Tolerance+0.0, -0.10 mm
Focal Length Tolerance±1%
Centration<3 arc minutes
Clear Aperture>90% of diameter
Surface Quality60-40 scratch & dig
Wavefront Distortionλ/4 @ 632.8 nm
CoatingsBBAR @ 400-700 nm
Housing Materialblack anodized alunimium
Mounting Threadoptional


Standa mounted achromatic triplet is three-lens system commonly used in fluorescence and spectroscopy research applications. Airspaced computer optimized triplet design is a cost effective and convenient way for correcting all primary aberrations. All our assemblies are mounted in robust aluminium housing, which allows easy handling and integration into optical setup.
Special options include:
• mounting threads
• triplets of greater apertures
• AR coatings.
Please contact us for pricing.


Mounted Achromatic Triplet Lenses
f/l, mmCA,mmHousing D, mmHousing t, mmOrdering code
5635413314ATL56-35
7735413314ATL77-35
9035413314ATL90-35
99.627412814ATL99.6-27
12727412814ATL127-27
144.927412814ATL144.9-27
15.5152515.514ATL15.5-15
