Home > Lenses > 14BCX - Double-Convex Lenses

		Converges incident light

		Lower spherical aberrations than for Plano-Convex lenses

		Other dimensions are available in small and mass production quantities

		Various AR coatings are available for all these lenses. Please refer to the Coatings Section

Standard Specifications

Material	BK7, UVFS
Diameter Tolerance	+0.0, -0.12 mm
Thickness Tolerance	±0.5 mm
Centration	<3 arc minutes
Clear Aperture	>90%
Surface Irregularity	λ/8 @ 633 nm
Surface Quality	40-20 scratch & dig
Paraxial focal length	±2% @ 546 nm for BK7 ±2% @ 355 nm for UVFS
AR Coatings	None. Please refer to the Coatings Section

Double convex lenses are symmetrical therefore have equal radius of curvature on both sides. Biconvex lenses are used as magnifiers, objectives, condensing systems. Since both surfaces contribute to the power of biconvex lenses, they have shorter focal length than PCX lenses of equal diameter and surface radius. Lenses can be anti-reflection coated (please refer to the Coatings section).

BK7 Double-Convex Lenses

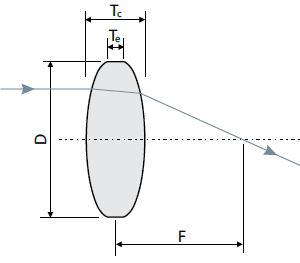

Diameter	Focal Length	Centre thickness CT	Edge thickness ET	Ordering code
12,7 mm	12,7 mm	4,8 mm	1,2 mm	14BCX12.7-05-1
12,7 mm	25 mm	3,5 mm	1,9 mm	14BCX25-05-1
12,7 mm	40 mm	2,5 mm	2 mm	14BCX40-05-1
12,7 mm	50 mm	2,5 mm	2 mm	14BCX50-05-1
12,7 mm	60 mm	2,5 mm	2 mm	14BCX60-05-1
12,7 mm	75 mm	2,5 mm	2 mm	14BCX75-05-1
12,7 mm	100 mm	2 mm	1,6 mm	14BCX100-05-1
12,7 mm	125 mm	2 mm	1,7 mm	14BCX125-05-1
12,7 mm	150 mm	2 mm	1,7 mm	14BCX150-05-1
12,7 mm	200 mm	2 mm	1,9 mm	14BCX200-05-1
12,7 mm	250 mm	2 mm	1,9 mm	14BCX250-05-1
12,7 mm	300 mm	2 mm	1,9 mm	14BCX300-05-1
12,7 mm	400 mm	2 mm	1,9 mm	14BCX400-05-1
12,7 mm	500 mm	3 mm	3 mm	14BCX500-05-1
25,4 mm	25 mm	9 mm	2,1 mm	14BCX25-1-1
25,4 mm	30 mm	7,5 mm	2,4 mm	14BCX30-1-1
25,4 mm	40 mm	6 mm	3 mm	14BCX40-1-1
25,4 mm	50 mm	6 mm	3 mm	14BCX50-1-1
25,4 mm	60 mm	4 mm	1,6 mm	14BCX60-1-1
25,4 mm	75 mm	4 mm	2 mm	14BCX75-1-1
25,4 mm	100 mm	4 mm	2,5 mm	14BCX100-1-1
25,4 mm	150 mm	4 mm	3 mm	14BCX150-1-1
25,4 mm	200 mm	4 mm	3,2 mm	14BCX200-1-1
25,4 mm	250 mm	4 mm	3,4 mm	14BCX250-1-1
25,4 mm	300 mm	4 mm	3,5 mm	14BCX300-1-1
25,4 mm	500 mm	4 mm	3,7 mm	14BCX500-1-1
25,4 mm	700 mm	4 mm	3,8 mm	14BCX700-1-1
25,4 mm	1000mm	4 mm	3,8 mm	14BCX1000-1-1
38,1 mm	50 mm	10,5mm	2,2 mm	14BCX50-1.5-1
38,1 mm	100 mm	6 mm	2 mm	14BCX100-1.5-1
38,1 mm	150 mm	5 mm	2,6 mm	14BCX150-1.5-1
38,1 mm	200 mm	5 mm	3 mm	14BCX200-1.5-1
38,1 mm	250 mm	5 mm	3,4 mm	14BCX250-1.5-1
38,1 mm	300 mm	5 mm	3,7 mm	14BCX300-1.5-1
38,1 mm	400 mm	5 mm	4 mm	14BCX400-1.5-1
38,1 mm	500 mm	5 mm	4,2 mm	14BCX500-1.5-1
38,1 mm	700 mm	5 mm	4,5 mm	14BCX700-1.5-1
38,1 mm	1000mm	5 mm	4,6 mm	14BCX1000-1.5-1
50,8 mm	50 mm	15 mm	1,5 mm	14BCX50-2-1
50,8 mm	75 mm	10 mm	2 mm	14BCX75-2-1
50,8 mm	100 mm	8,5 mm	2 mm	14BCX100-2-1
50,8 mm	150 mm	6,1 mm	2 mm	14BCX150-2-1
50,8 mm	200 mm	5 mm	2 mm	14BCX200-2-1
50,8 mm	300 mm	5 mm	3 mm	14BCX300-2-1
50,8 mm	400 mm	5 mm	3,6 mm	14BCX400-2-1
50,8 mm	500 mm	5 mm	4 mm	14BCX500-2-1
50,8 mm	750 mm	5 mm	3,4 mm	14BCX750-2-1
50,8 mm	1000mm	5 mm	4,4 mm	14BCX1000-2-1
50,8 mm	1200mm	5 mm	4,5 mm	14BCX1200-2-1

UVFS Double-Convex Lenses

Diameter	Focal Length	Centre thickness CT	Edge thickness ET	Ordering code
12,7 mm	12,7 mm	6 mm	1,8 mm	14BCX12.7-05-2
12,7 mm	25 mm	3,5 mm	1,8 mm	14BCX25-05-2
12,7 mm	50 mm	3 mm	2,1 mm	14BCX50-05-2
12,7 mm	75 mm	2,5 mm	1,9 mm	14BCX75-05-2
12,7 mm	100 mm	2,3 mm	1,9 mm	14BCX100-05-2
12,7 mm	150 mm	2,2 mm	1,9 mm	14BCX150-05-2
25,4 mm	25 mm	10 mm	2,4 mm	14BCX25-1-2
25,4 mm	40 mm	7,1 mm	2,1 mm	14BCX40-1-2
25,4 mm	50 mm	6 mm	2,5 mm	14BCX50-1-2
25,4 mm	75 mm	4 mm	1,7 mm	14BCX75-1-2
25,4 mm	100 mm	4 mm	2,3 mm	14BCX100-1-2
25,4 mm	150 mm	3,2 mm	2,1 mm	14BCX150-1-2
25,4 mm	200 mm	3 mm	2,2 mm	14BCX200-1-2
25,4 mm	250 mm	3 mm	2,3 mm	14BCX250-1-2
25,4 mm	300 mm	3 mm	2,6 mm	14BCX300-1-2
25,4 mm	400 mm	3 mm	2,7 mm	14BCX400-1-2
25,4 mm	500 mm	3 mm	2,7 mm	14BCX500-1-2
25,4 mm	750 mm	3 mm	2,9 mm	14BCX750-1-2
25,4 mm	1000mm	3 mm	2,8 mm	14BCX1000-1-2
38,1 mm	50 mm	11 mm	1,9 mm	14BCX50-1.5-2
38,1 mm	100 mm	5 mm	1,5 mm	14BCX100-1.5-2
38,1 mm	150 mm	5 mm	2,1 mm	14BCX150-1.5-2
38,1 mm	200 mm	5 mm	2,8 mm	14BCX200-1.5-2
38,1 mm	250 mm	4 mm	2,3 mm	14BCX250-1.5-2
38,1 mm	300 mm	5 mm	3,5 mm	14BCX300-1.5-2
38,1 mm	400 mm	5 mm	3,9 mm	14BCX400-1.5-2
38,1 mm	500 mm	5 mm	4,1 mm	14BCX500-1.5-2
38,1 mm	700 mm	5 mm	4,4 mm	14BCX700-1.5-2
38,1 mm	1000mm	4,7 mm	4,3 mm	14BCX1000-1.5-2
50,8 mm	50 mm	16,2mm	1 mm	14BCX50-2-2
50,8 mm	75 mm	10,3mm	1,1 mm	14BCX75-2-2
50,8 mm	100 mm	10 mm	2,9 mm	14BCX100-2-2
50,8 mm	150 mm	7,5 mm	3 mm	14BCX150-2-2
50,8 mm	175 mm	7 mm	3 mm	14BCX175-2-2
50,8 mm	200 mm	7 mm	3,5 mm	14BCX200-2-2
50,8 mm	250 mm	6 mm	3,8 mm	14BCX250-2-2
50,8 mm	300 mm	6 mm	3,7 mm	14BCX300-2-2
50,8 mm	500 mm	6 mm	4,8 mm	14BCX500-2-2
50,8 mm	1000mm	6 mm	5,4 mm	14BCX1000-2-2
