Non-Polarizing Beamsplitter Plates

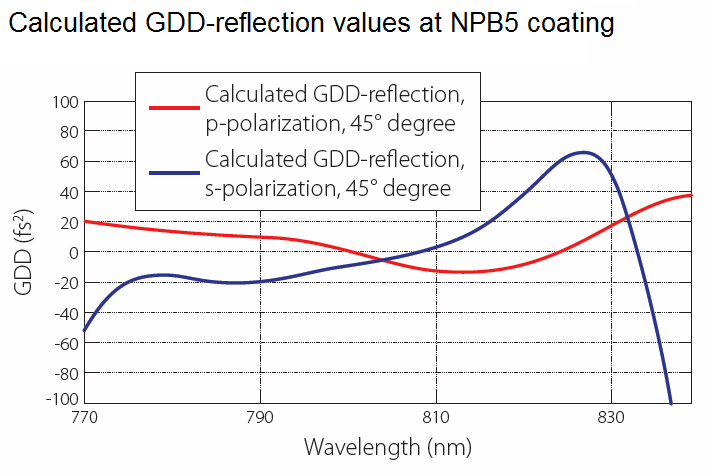

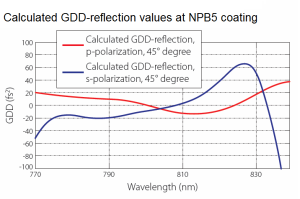

GDD - Group Delay Dispersion
No absorption loss
High laser induced damaged threshold
Separation of polarizations Rs-Rp<5 %
GDD compensated coatings for fs applications


In comparison to Non-Polarizing Beamsplitter Cubes 14NBC, our Non-Polarizing Beamsplitters Plates 14DM-NPB feature outstanding performance. Cubes typically cause approximately 10% loss, because of absorption in hybrid coatings. At the same time laser induced damage threshold scales in range of approximately 0.3 J/cm2. Non-Polarizing Beamsplitting Plates 14DM-NPB are coated with only dielectric layers, thus damage threshold is much higher and exceeds 6 J/cm2. Separation of polarizations Rs - Rp typically is lower than 5 %. Because of this feature beamsplitters are suitable for use with an unpolarized light or light of any other state of polarization. Standard items have a decent working bandwidth of several tens of nanometers, what makes them useful for several lasers. For example 14DM-1-NPB6.50-45-2 beamsplitter (Rsp=50 % @ 1025 nm - 1095 nm) can be used with Yb:KGW, Yb:YAG, Nd:YAG, Yb:Glass, Nd:Glass lasers. For usage with femtosecond lasers, STANDA has designed 14DM-1-NPB5.50-45-2 and 14DM-1-NPB2.50-45-2 beamsplitters, which do not influence pulse width, as coatings are GDD compensated. Custom size configurations and non-standard wavelengths are also available upon request.


Standard Specifications
Diameter tolerance+0.0/-0.1 mm
Thickness tolerance±0.1 mm
Clear Aperture>90%
Surface quality20/10 S/D
Surface Flatness<λ/8 @ 632.8 nm
Separation of polarizations, Rs-Rp<5 %
Protective chamfers<0,25 mm x 45 deg
Coating Adhesion and DurabilityPer MIL-C-675A
Laser Damage Threshold>6 J/cm2 for 10 ns pulses @1064 nm


Non-Polarizing Beamsplitter Plates
Substrate materialReflectivity Rsp, %Wavelength, nmAngle of incidence, °Ordering codes
Ø25.4 x 5 mm20 x 40 x 5 mm
UVFS503554514DM-1-NPB1.50-45-214DM-20x40-NPB1.50-45-2
UVFS50390 - 410 (GDD< 20 fs2)4514DM-1-NPB2.50-45-214DM-20x40-NPB2.50-45-2
UVFS50515 - 532 (GDD< 70 fs2)4514DM-1-NPB3.50-45-214DM-20x40-NPB3.50-45-2
BK7506334514DM-1-NPB4.50-45-114DM-20x40-NPB4.50-45-1

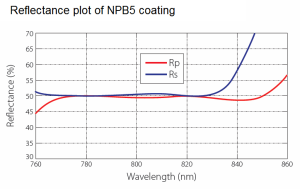

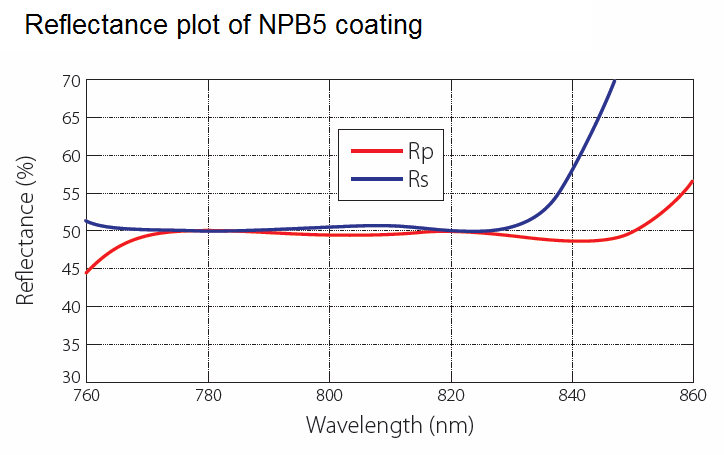

UVFS50770 - 830 (GDD< 75 fs2)4514DM-1-NPB5.50-45-214DM-20x40-NPB5.50-45-2
UVFS501025 - 1095 (GDD< 100 fs2)4514DM-1-NPB6.50-45-214DM-20x40-NPB6.50-45-2
BK7501530 - 15404514DM-1-NPB7.50-45-114DM-20x40-NPB7.50-45-1
