Home > Coatings Section > DAR - Dual Anti-Reflection Coatings
Frequently used in multi-frequency laser output systems (e.g. frequency doubling)
Coatings are provided by Ion Beam Sputtering (IBS) or Electron beam evaporation with/without Ion assistance coating techniques

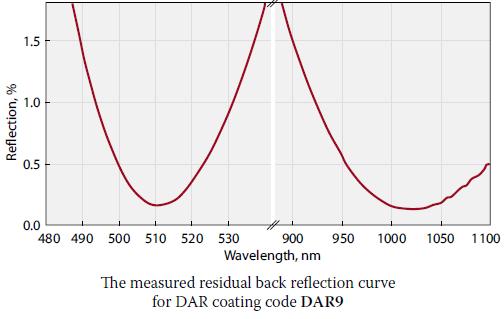

Dual AR coatings designed to reduce the reflectivity of a component to near-zero for two certain wavelengths. Usually these coatings are used in multi-frequency laser output systems (e.g. frequency doubling). This coating provides very high transmission at two different wavelengths. Typical wavelengths and reflection curves of an AR coating suitable for the prevalent laser system output at 1064 nm and 532 nm are shown below.

Dual Anti-Reflection Coatings
Wavelength, nmResidual average Reflectivity @ 0° AOI, %Coating Code
266+532<0.5DAR1
343+1030<0.3DAR2
355+532<0.3DAR3
355+1064<0.3DAR4
399+556<0.3DAR5
400+800<0.3DAR6
426+852<0.3DAR7
515+1030<0.25DAR8
532+1064<0.25DAR9
1064+1319<0.3DAR10



Standard Specifications
Coating Adhesion and DurabilityPer MIL-C-675A
Clear Aperture>90% of diameter
Laser Damage Threshold>6 J/cm2 for 10 ns pulses @ 1064 nm
