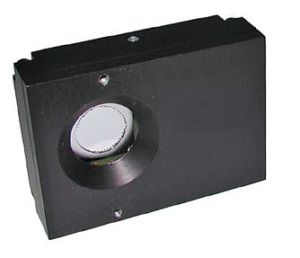

Micromachined Membrane Deformable Mirrors
MMDM are small and light, especially compared to continuous faceplate piezoelectric mirrors

Negligible power consumption

High optical quality, better than 400 nm rms over the whole aperture

Very smooth surface: the scattering is negligible

Large correction range - up to 25 µm in total wavefront deformation

These mirrors can be coated with metal and metal-dielectric coatings: to be used in lasers at power levels of up to 600 W CW

Zero hysteresis

Negligible parameter drift


Micromachined membrane deformable mirrors with apertures in the range of 10 to 50 mm represent a high-quality affordable solution for fast dynamic correction of low-order optical aberrations such as defocus, astigmatism, coma, etc in lasers, telescopes, ophthalmology, displays and general imaging optics.


Ordering
